Tuesday 9 February 2010

Push rod tubes and rockers

Time to fit the Empi push rod tubes






1st side is done





Saturday 6 February 2010

Piston / Cylinder / Head

Good clean in a soapy water bowl for the 1641cc cylinders and pistons



All pistons rings are in place. Everything is ready to be fitted.

Installation of the new Heavy duty Springs

Excellant tool to put the pistons in there chambers.



First half done.

Tuesday 2 February 2010

SCAT Pulley

Tried to install the pulley tonight but the tinware was touching the oil pump, so i had to make a hole to give access.



This is how it looks

Everything is so tight.

At least it's in.

SCAT Full Flow filter oil Pump


This is the SCAT Full Flow I am going to install,

The first problem was that the studs were too short.

And the 2nd one was that the oil pump was hitting the block and couldn't be a perfect fit.

I first removed the studs and made some longer ones

I also had to remove some material on the oil pump, only about 1mm

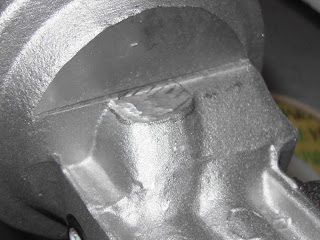

I had to do the same on the block.

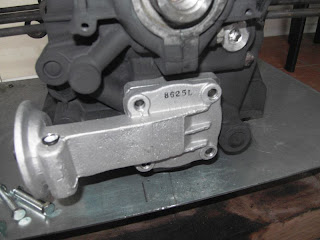

Job done, the oil pump is in place.
